Have you ever wondered what makes precision tubes different from seamless tubes? These two types of tubes are essential in various industries but serve very different purposes.In this post, we’ll explore the key differences between precision tubes and seamless tubes. You’ll learn about their manufacturing processes, applications, and why choosing the right tube is crucial for your projects.
Precision tubes are created using cold drawing, cold rolling, hot rolling, and extrusion processes. Each step contributes to the tube’s high precision. The process ensures smooth surfaces, strict tolerances, and uniform wall thickness. By using multiple processes, precision tubes achieve exceptional accuracy in size and finish.

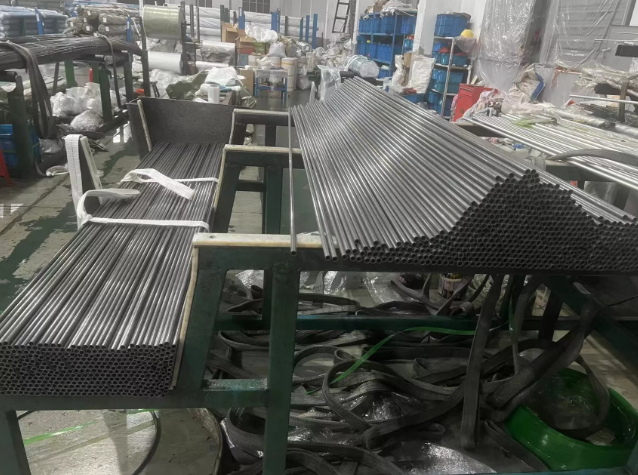

Seamless tubes are typically made through hot rolling and cold drawing. Although they are durable, the manufacturing process results in lower precision compared to precision tubes. The tubes might not meet the tight tolerances required in some high-precision applications.
Precision tubes require more complex processes, making them more expensive and time-consuming. The precision achieved adds to the cost but ensures higher quality. In contrast, seamless tubes are simpler to manufacture, which reduces their cost and production time.
Below is a comparison of the manufacturing processes for both tube types:
Step | Precision Tubes | Seamless Tubes |
Raw Material | Steel billets or coils | Steel billets or coils |
Primary Process | Cold drawing, cold rolling, extrusion | Hot rolling, cold drawing |
Secondary Process | Multiple cold drawing, annealing | Single cold drawing |
Final Product | High precision, uniform thickness | Standard dimensions, rougher finish |
Precision tubes have tight tolerances, typically ±0.02mm, ensuring high accuracy.
Seamless tubes have a larger tolerance of ±0.1mm, which makes them less precise.
Precision tubes come with a mirror-like finish, often with a roughness of Ra ≤ 0.4μm, making them ideal for high-precision applications.
Seamless tubes have a rougher surface, typically Ra ≤ 3.2μm, which might require additional finishing for some uses.
Precision tubes can withstand higher pressures due to their dense structure and material quality.
Seamless tubes are strong but not as pressure-resistant as precision tubes, making them more suitable for general applications.
Precision tubes maintain a uniform wall thickness of ≤ 5%.
Seamless tubes have a larger variation in wall thickness, typically ≤ 10%.
Precision tubes are often made from carbon steel and alloy steel. These materials are ideal for applications in high-precision machinery, such as hydraulic cylinders, automotive bearings, and high-performance equipment.
Seamless tubes can be made from a wider range of materials, including carbon steel, stainless steel, and other alloys. They are more commonly used in applications like fluid pipelines, oil drilling pipes, and construction scaffolding.
Selecting the right material depends on the intended application. If high precision and performance are required, opt for precision tubes. If you need general-purpose material for structural support or fluid transport, seamless tubes may be more suitable.
Hydraulic systems: Precision tubes are essential for reliable operation under high pressure.
Automotive driveshafts: Their high durability and dimensional accuracy make them ideal for high-performance vehicles.
Aerospace components: Precision tubes are widely used in parts that need to meet tight tolerances.
High-precision machinery: Often used in robotics, medical instruments, and optical equipment.
Fluid pipelines: Seamless tubes are ideal for carrying fluids due to their resistance to pressure.
Structural components: These tubes are commonly used in construction projects for scaffolding and beams.
Oil drilling pipes: Due to their strength and ability to handle harsh conditions, seamless tubes are perfect for this application.
Heat exchangers and boiler tubes: Often used in industrial settings where heat transfer is critical.
Choosing between precision tubes and seamless tubes depends on your project’s needs. If you require high pressure, tight tolerances, and a smooth finish, precision tubes are the better choice. For general-purpose use, where cost and lead time are more critical, seamless tubes may be sufficient.
Precision tubes are more costly to produce due to their complex manufacturing process. Cold drawing, cold rolling, and multiple annealing steps all add to the cost. These processes ensure high precision, smooth surfaces, and uniform wall thickness, but they require more time and specialized equipment. As a result, the overall production costs for precision tubes are higher than seamless tubes.
The choice of material plays a significant role in the cost difference. Precision tubes often use higher-grade materials, such as carbon and alloy steels, which cost more to manufacture and process. These materials ensure the tubes’ durability and precision, making them suitable for high-performance applications.
In contrast, seamless tubes are made from a broader range of materials, often including lower-grade carbon steel, which is more affordable. The manufacturing process for seamless tubes also requires less precise material control, reducing overall costs.
When choosing between precision and seamless tubes, it’s important to balance cost with performance. Precision tubes offer superior strength, dimensional accuracy, and surface finish, which makes them ideal for high-stress applications like aerospace, automotive, and hydraulic systems. However, these benefits come at a higher cost.
For projects where the utmost precision and performance aren’t necessary, seamless tubes might be a better option. They’re less expensive, making them suitable for applications like pipelines and construction scaffolding where cost is more important than exact specifications.
High-pressure systems
Applications requiring tight tolerances and a smooth finish
Performance-critical parts in aerospace or automotive sectors
Fluid transportation
Structural components with fewer precision requirements
Budget-conscious projects
Precision tubes excel in high-stress environments. They offer higher yield strength and greater pressure resistance compared to seamless tubes. The manufacturing process ensures a dense, robust structure, making precision tubes ideal for extreme conditions like hydraulic systems, aerospace applications, and automotive components.
In contrast, seamless tubes are strong but lack the same pressure resistance. They are still suitable for many applications but may not perform as well under extreme pressure.
Property | Precision Tubes | Seamless Tubes |
Yield Strength | Higher | Lower |
Pressure Resistance | Superior | Moderate |
Burst Resistance | Higher | Moderate |
Precision tubes are built to last. Their endurance is often superior, especially in applications subject to repeated stress, like automotive driveshafts or military defense projects. The high precision and controlled material properties result in longer service lives, even in demanding environments.
For example, a defense project switched to precision tubes, reducing weight by 25% and increasing pressure capacity by 18%. This improvement is a testament to how precision tubes outperform seamless tubes in terms of fatigue life and durability.
Precision tubes are the go-to choice when performance matters most. They are ideal for:
High pressure: Hydraulic cylinders and aerospace components require tubes that can handle extreme pressure.
High fatigue cycles: Precision tubes can endure repeated cycles of stress, making them perfect for automotive driveshafts or defense systems.
Precision machining: If your application needs exact dimensions and a smooth surface finish, precision tubes are essential.
Seamless tubes are more cost-effective and suitable for general applications. They work well for:
General construction: Steel scaffolding, structural components, and other construction materials.
Pipelines: For carrying fluids in less demanding environments, seamless tubes perform well.
Lower stress applications: If the application doesn’t require high pressure or fatigue resistance, seamless tubes are sufficient.
When choosing between precision tubes and seamless tubes, several factors should guide your decision:
Required Precision: If you need strict dimensional accuracy, go for precision tubes. They offer tighter tolerances and better surface finishes.
Pressure: Precision tubes handle higher pressures, making them suitable for hydraulic systems or aerospace applications.
Material Strength: Precision tubes are designed for high-strength performance, ideal for parts exposed to stress or fatigue.
Hydraulic systems require tubes that can withstand high pressure without failure. Precision tubes, with their superior pressure resistance and smooth surface finish, are ideal. They ensure the reliability of hydraulic components such as cylinders and valves.
Seamless tubes are perfect for fluid pipelines, especially when cost-effectiveness and durability are key. They are strong enough to handle fluid transport in industries like oil, gas, and water systems. Their relatively lower cost makes them a preferred choice for large-scale installations.
Automotive: Use precision tubes for components requiring high performance, such as driveshafts. Seamless tubes can be used for structural parts that don’t require high precision.
Construction: Seamless tubes are often used for scaffolding and structural components, where cost is more important than tight tolerances.
Aerospace: Precision tubes are a must for parts that need extreme durability and dimensional accuracy.
Application | Tube Type | Key Factors | Recommendation |
Hydraulic Systems | Precision Tube | High pressure, tight tolerance | Recommended |
Fluid Pipelines | Seamless Tube | Cost, durability | Recommended for larger installations |
Automotive | Precision Tube | Performance, strength | For high-performance parts |
Construction | Seamless Tube | Cost, durability | For scaffolding, pipes |
Precision tubes offer higher accuracy, strength, and pressure resistance, while seamless tubes are more cost-effective for general use. Consider manufacturing processes, material properties, and performance needs when selecting the right tube for your project. Evaluate factors like precision, pressure, and budget to make the best choice.
